Fire Sprinkler and Hydrant System
Fire hydrant system has an outlet system where fire hydrant water flows from the fire hydrant pipe network. This system hydrant includes a hydrant fire pillar and a hydrant valve, which are connected to a fire hose reel to deliver water to the fire.
In addition to hydrants, indoor fire hydrant system enhances fire protection within buildings. Fire hydrant NFPA standards ensure the effectiveness of NFPA hydrant systems, including automatic air vent hydrant components. For outdoor installations, outdoor hydrants or pitot hydrants help regulate water pressure.
A fire sprinkler system complements the indoor hydrant setup, automatically controlling the fire before firefighters arrive. These systems, integrated with panel hydrant units, provide optimal fire suppression in a variety of hydrant installation types.
Professional Hydrant and Sprinkler Contractor for Fire Fighting System
Adiwarna as a professional fire hydrant contractor, we provide complete services ranging from planning, building hydrant installation, to building hydrant and water sprinkler system maintenance for various building needs. We are also a fire hydrant distributor that provides high quality and certified hydrant products. With years of experience as a hydrant and fire sprinkler distributor, we are ready to meet your needs with the best products and services.

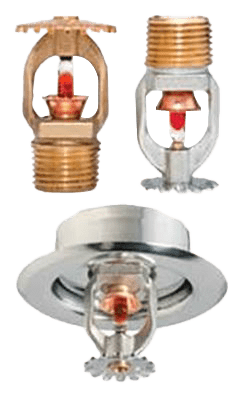

Fire Sprinkler System
A fire sprinkler system is an essential fire protection device that automatically activates when a fire is detected. It sprays water to extinguish the fire and prevent further damage. There are different types of sprinklers, such as pre action fire sprinkler system, which require a special trigger before the water is released, and dry fire sprinkler system, which use pressurized air instead of water to prevent freezing in cold environments. Installing reliable fire sprinkler water ensures better fire safety within the building.
Specifications
- UL and C-UL Listed; FM, NYC, LPCB, and VdS Approved.
- For 5.6 K-Factor, horizontal and vertical sidewall sprinklers (TY3451, TY3351), see TFP161 for technical information and listing details.
- For 5.6 K-Factor, upright and pendent sprinklers (TY315, TY325), see TFP152 for technical information and listing details.
- For 2.8, 5.6, and 8.0 K-factor, upright, pendent, and recessed pendent sprinklers (TY1151, TY1251, TY4851, TY4951, TY4151, TY4251, TY3151, TY3251), see TFP151 for technical information and listing details.
Water Monitor
Hydrant monitors are high-capacity devices designed to control and direct large amounts of water for firefighting. Fire hydrant monitor helps extinguish fires efficiently by providing a steady stream of water with adjustable range and pressure. To ensure optimal performance, pressurized tank hydrants maintain consistent hydrant pressure, preventing interruptions in water flow. Proper hydrant pressure management is essential for a hydrant monitor system to function effectively in emergency situations.
Specifications
- Rated for 2000 gpm (7550 LPM)
- Maximum pressure rating 200 psi (14 BAR)
- Durable lightweight aluminum construction
- Red urethane enamel finish

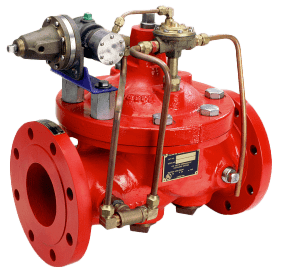

Flood System
Specifications
- Opens on demand to supply fire protection sprinkler systems.
- The pilot system can be operated hydraulically, pneumatically or manually.
- The body and enclosure are made of strong and durable ductile iron.
- The simple and efficient design is easy and economical to maintain.

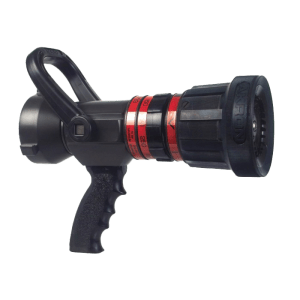

Nozzle
Specifications
- Combination pattern nozzle with multiple flow settings
- Excellent wide mist pattern for optimum firefighter protection
- Flow pattern retainer facilitates positive positioning and smooth action
- Raised lugs for easier pattern identification
- Laser-etched labels for excellent durability and visibility
- Flush without changing pattern or shutting off
- Suitable for high-pressure applications up to 580 psi (40 bar)
- Ergonomically designed pistol grip available in a variety of colors
- Strong chrome-plated metal ball stopper for smooth action and long service life
- Stainless mesh screen prevents clogging caused by debris
- Minimal maintenance due to rugged design, precision machining and quality materials
- FM approved

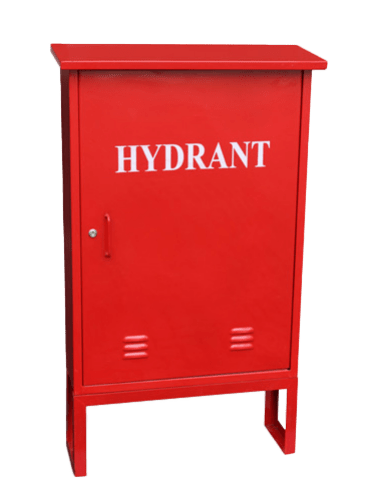

Outdoor Hydrant Box
MODEL: TYPE C
- Size: 66(W)x95(H)x20(D)
- Wall Thickness: 1.2mm
- Material: Mild Steel
- Color: Red (Ral 3000)
- Finish: Powder Coating

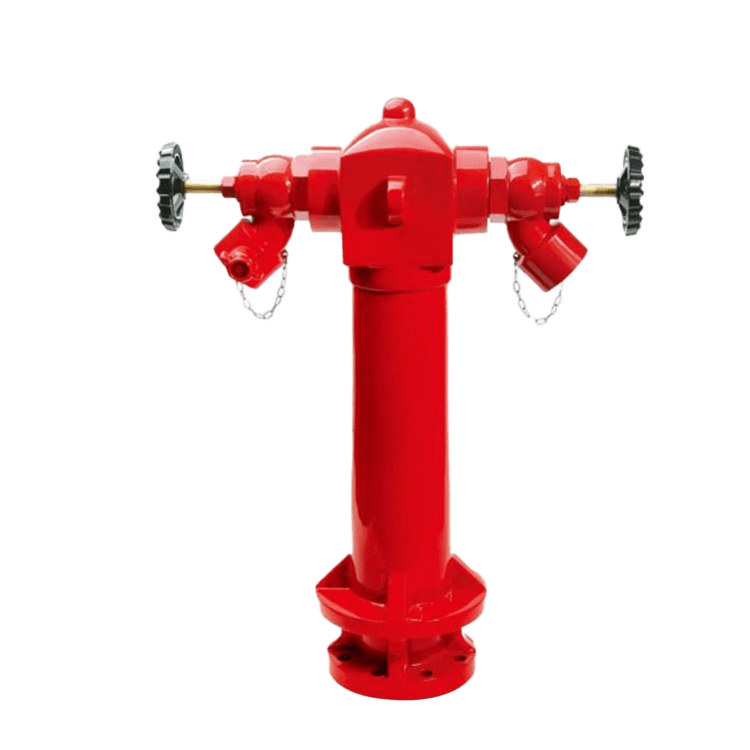

Fire Hydrant Pillar CI
MODEL: CI
- Type: Wet Barel
- Body Material: 1.2mm
- Valve Body: Mild Steel
- Inlet Size: 4″
- Outlet Size: 2×2.5” Oblique Valve
- Coupling: Machino/Instantaneous BS336
- Working Pressure: 10 bar
- Test Press: 14 bar

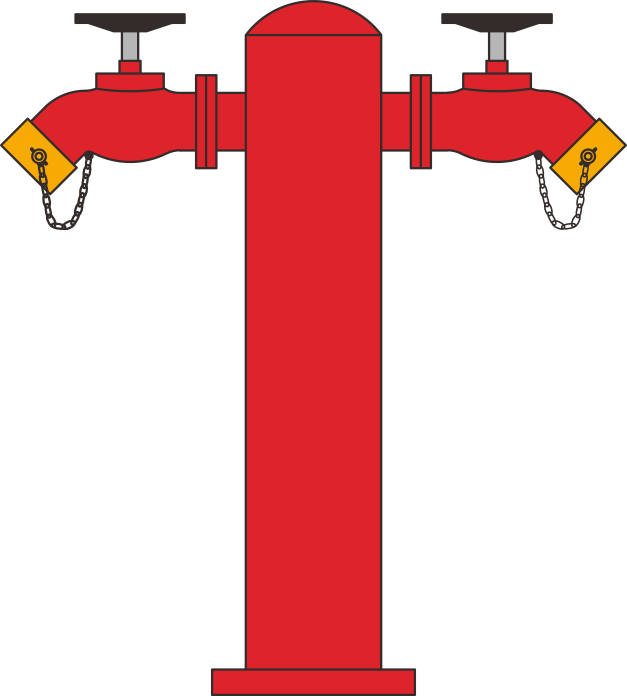

Fire Hydrant Pillar PF
MODEL: PF
- Body Material: Black Steel Pipe ERW, ASTM A53, Sch.40
- Valve Body: Brass
- Inlet Size: 6″ Flanged ANSI#150 RF
- Outlet Size: 2 x 2.5″ Bib-nosed type valve
- Coupling: Machino/Instantaneous BS336
- Working Pressure: 10 bar
- Test Press: 14 bar
Hydrant Nozzle
MODEL: GE 084AV
- Type: Jet & Spray
- Body Material: Allumunium Alloy
- Intlet Size: 1.5”, 2.5”
- Coupling: Machino

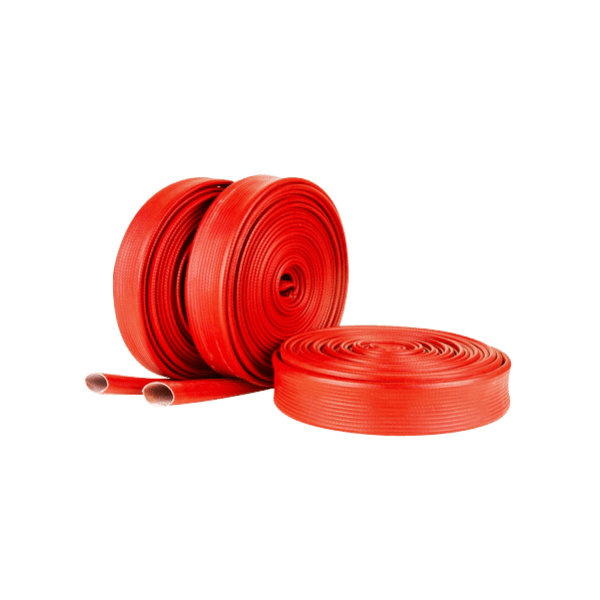

Hydrant Fire Hose
MODEL: FH-01
- Size: 1.5”, 2.5”
- Working Pressure: 17 bar
- Test Press: 51 bar

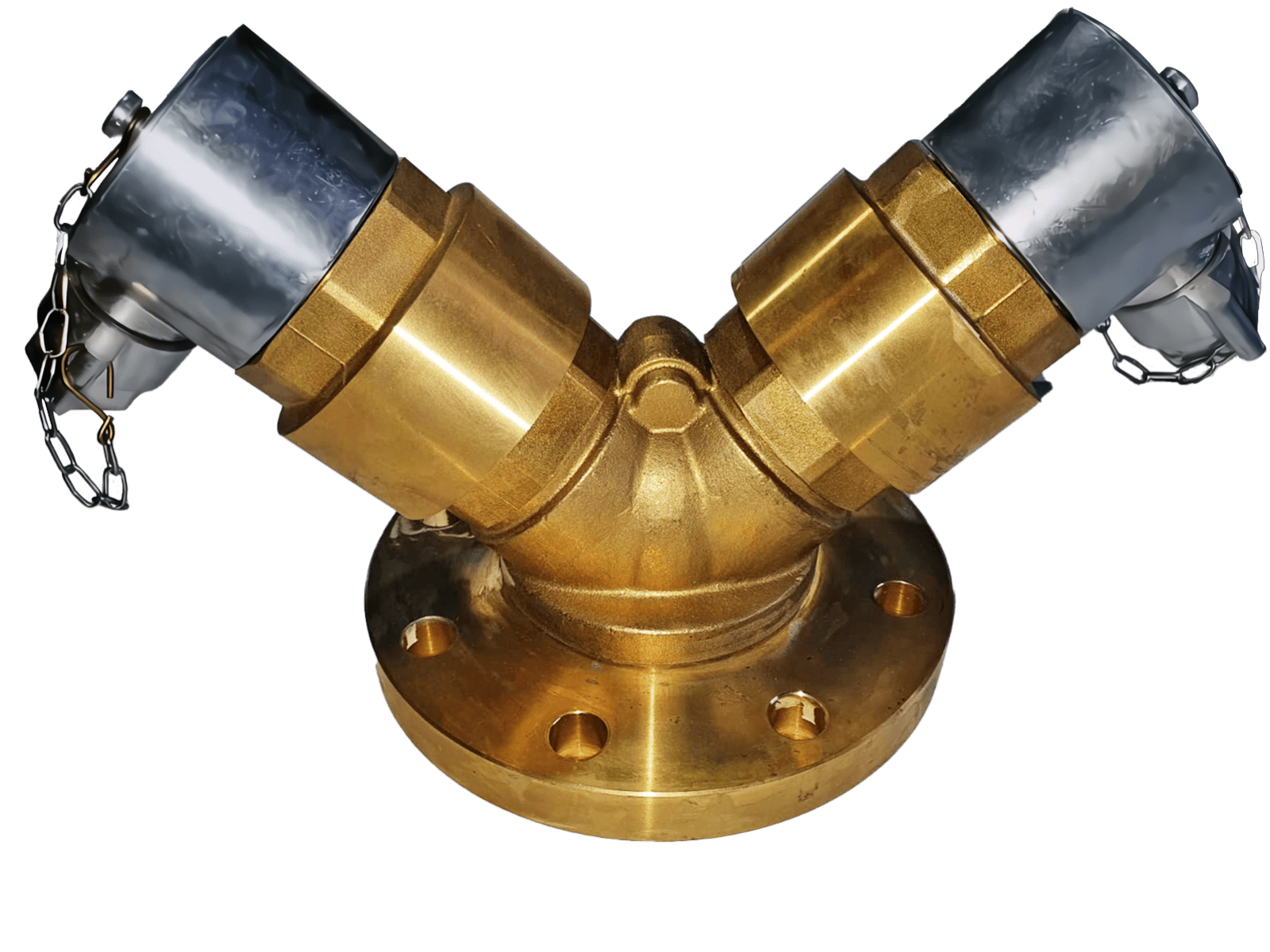

Siamese Connection (2 Way)
MODEL: SC
- Type: Wall Mounting
- Body Material: Brass
- Inlet Size: 2 x 2.5″
- Outlet Size: 4″ Flanged ANSI#150
- Inlet Coupling: Machino/Instantaneous BS336
- Working Pressure: 10 bar
- Test Pressure: 14 bar
- Finish: Natural Finish (Brass)
